DIY Sprinkler Head Adjustment: A Safer Step-by-Step Guide
Adjustment can correct direction, arc, or reach when a head is working properly. It cannot repair broken components, leaks, pressure problems, valve faults, poor zone design, or damaged underground piping.
Start by observing the entire zone
Run one irrigation zone at a time and watch from a safe distance. Look for heads that do not rise, spray into pavement, stop rotating, mist excessively, leak around the body, or fail to reach the intended turf. Also note pooling, runoff, and dry areas. A lawn symptom alone does not prove that a head needs adjustment.
Before touching a component, turn the zone off. Do not place your face over a sprinkler as it activates, force a stuck riser, or dig around unknown utilities. If excavation is needed, follow applicable utility-location requirements. For controller, wiring, valve, mainline, or repeated pressure issues, move directly to professional evaluation.
Know which type of head you have

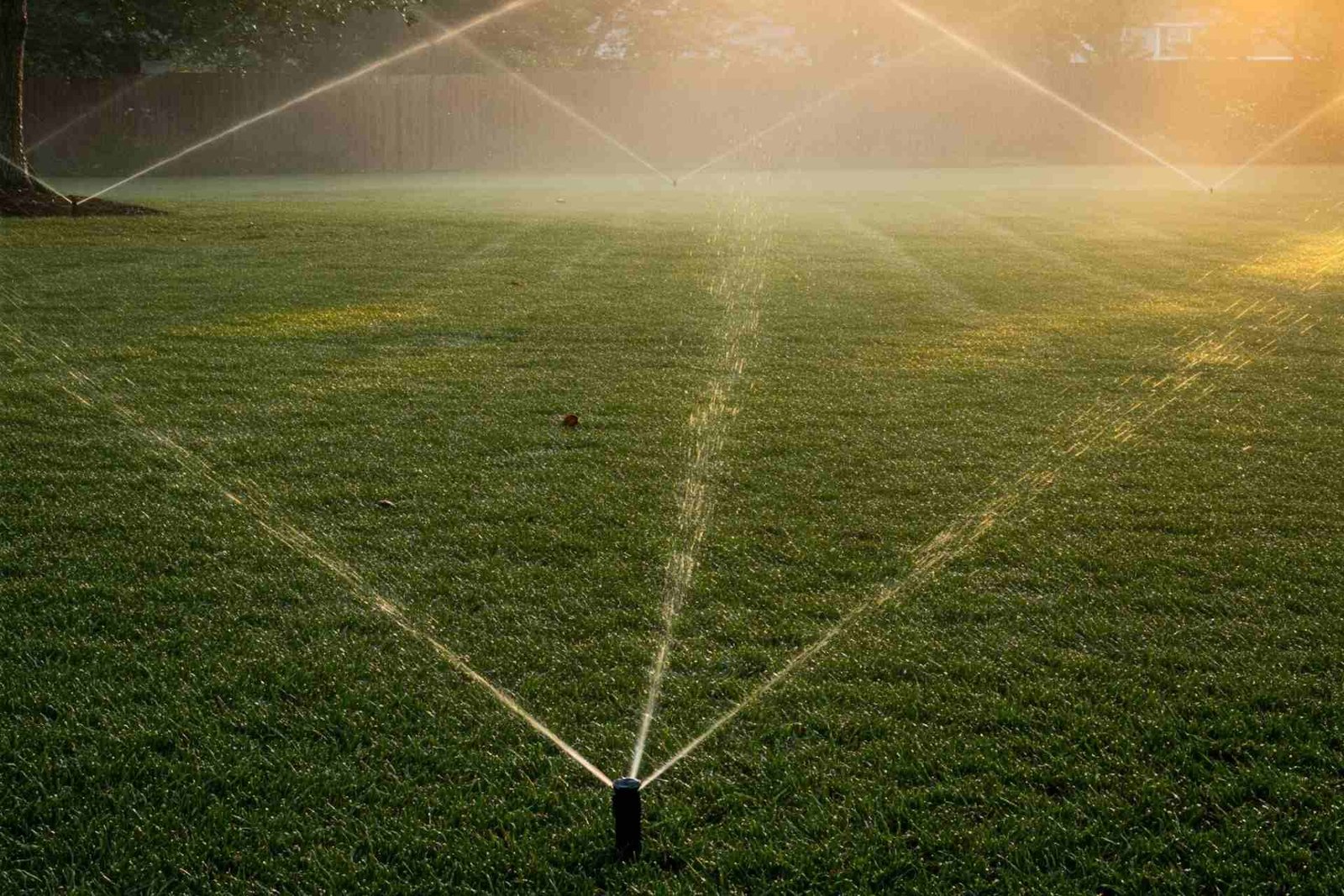

Fixed spray head
A spray head applies a stationary fan of water. The nozzle pattern may be fixed or adjustable. Direction and radius controls vary by nozzle model.
Rotor
A rotor turns one or more streams across an arc. Arc limits, radius, and the correct adjustment tool vary by manufacturer and model.
Rotary nozzle
A rotary nozzle fits a spray body but produces rotating streams. It should not be adjusted as though it were a conventional fixed spray nozzle.
A careful adjustment process
Document the existing pattern
With the zone running, mark dry gaps, overspray, and areas receiving too much water. Photograph the head position and surrounding coverage so you can reverse an unhelpful change.
Turn the zone off and clear visible obstructions
Remove loose grass or debris around the top without pulling, twisting, or excavating the body. If the nozzle or filter is designed for owner cleaning, follow the manufacturer’s removal and reassembly instructions.
Confirm the head is level and undamaged
A tilted, sunken, cracked, or loose body is a repair condition, not simply an arc adjustment. Stop if water bubbles from the soil or the head will not stay in position.
Adjust only the supported control
Use the correct tool and model instructions to make a small change to direction, arc, or radius. Do not turn beyond a stated stop. Some nozzles must be adjusted while operating; others should not—follow the product instructions.
Restart and observe from outside the spray path
Check the new pattern against adjacent heads and the intended landscape. Avoid aiming water at pavement, structures, fences, vehicles, or areas outside the property.
Measure distribution before changing runtime
UF/IFAS recommends straight-sided catch containers to compare output across an area. Uneven container levels indicate a distribution problem. Correct coverage before increasing the watering duration for the entire zone.
See the UF/IFAS Florida lawn-watering guide for the catch-can method and water-stress indicators.
Adjustment or repair?
| Observed issue | Adjustment may help | Repair or evaluation is more appropriate |
|---|---|---|
| Water reaches pavement | Direction, arc, or supported radius setting | Wrong nozzle, tilted body, poor placement, or mismatched head |
| Dry strip between working heads | Minor direction or arc correction | Pressure, spacing, nozzle mismatch, blockage, or zone-design issue |
| Water pools around the head | Usually not an adjustment issue | Cracked fitting, damaged body, seal failure, drainage, or low-head drainage |
| Rotor no longer turns | Check for a visible obstruction only | Internal wear, damage, pressure problem, or replacement need |
| Several heads mist or have weak reach | Do not compensate head by head | Zone-wide pressure, flow, valve, or supply problem |
When to stop DIY work
Stop and request sprinkler repair service when you find a cracked head or fitting, persistent leak, sunken or tilted body requiring excavation, wiring or controller fault, a valve that will not open or close, multiple weak heads, repeated pressure changes, or water surfacing away from the sprinkler.
If runoff or standing water continues even when the system is operating correctly, the property may also need a drainage evaluation. For routine seasonal system review, explore seasonal irrigation service. A dull lawn should be evaluated in context; read why grass can lose color before assuming additional watering is the solution.
For a broader view of available services, visit irrigation services or request an evaluation.
Sprinkler-adjustment questions
Can every sprinkler head be adjusted with a screwdriver?
No. Some spray nozzles, rotors, and rotary nozzles require a specific tool or procedure. Identify the model and follow the manufacturer’s instructions.
Should I increase runtime to fix a dry spot?
Not before checking distribution. A blocked, tilted, mismatched, or poorly aimed head can create a dry spot while the rest of the zone receives too much water.

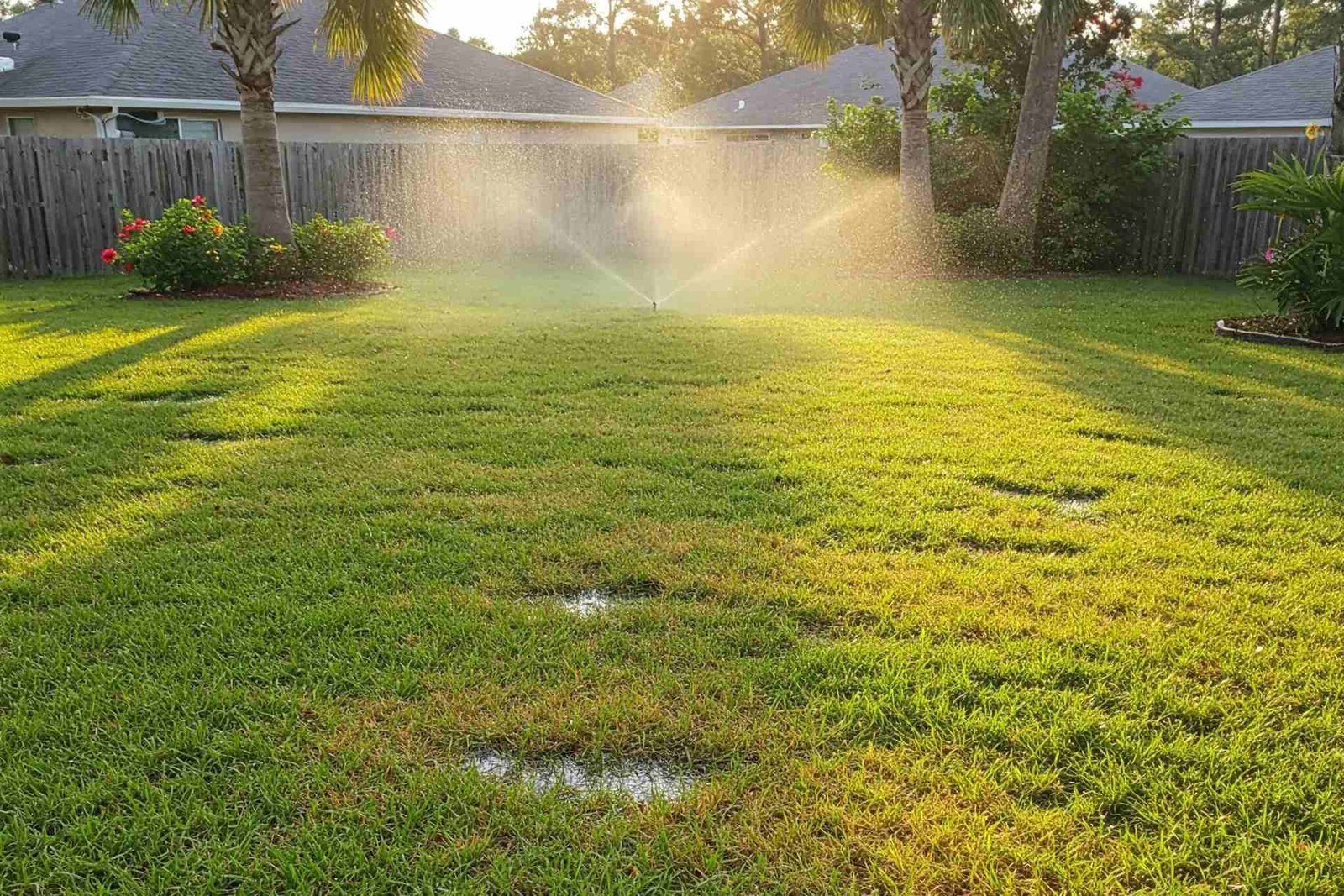

Why is water pooling around one sprinkler?
Pooling may indicate a cracked fitting, damaged seal or body, low-head drainage, excess runtime, or a site-drainage problem. Arc adjustment alone usually will not correct it.
How can I test sprinkler coverage?
Place straight-sided containers across the watering pattern, run the zone for a measured period, and compare the collected depth. UF/IFAS describes this catch-can method for checking uniformity.
When should I call for professional sprinkler repair?
Call when work requires excavation, component replacement, valve or wiring diagnosis, pressure troubleshooting, leak repair, or correction of multiple heads or zones.
